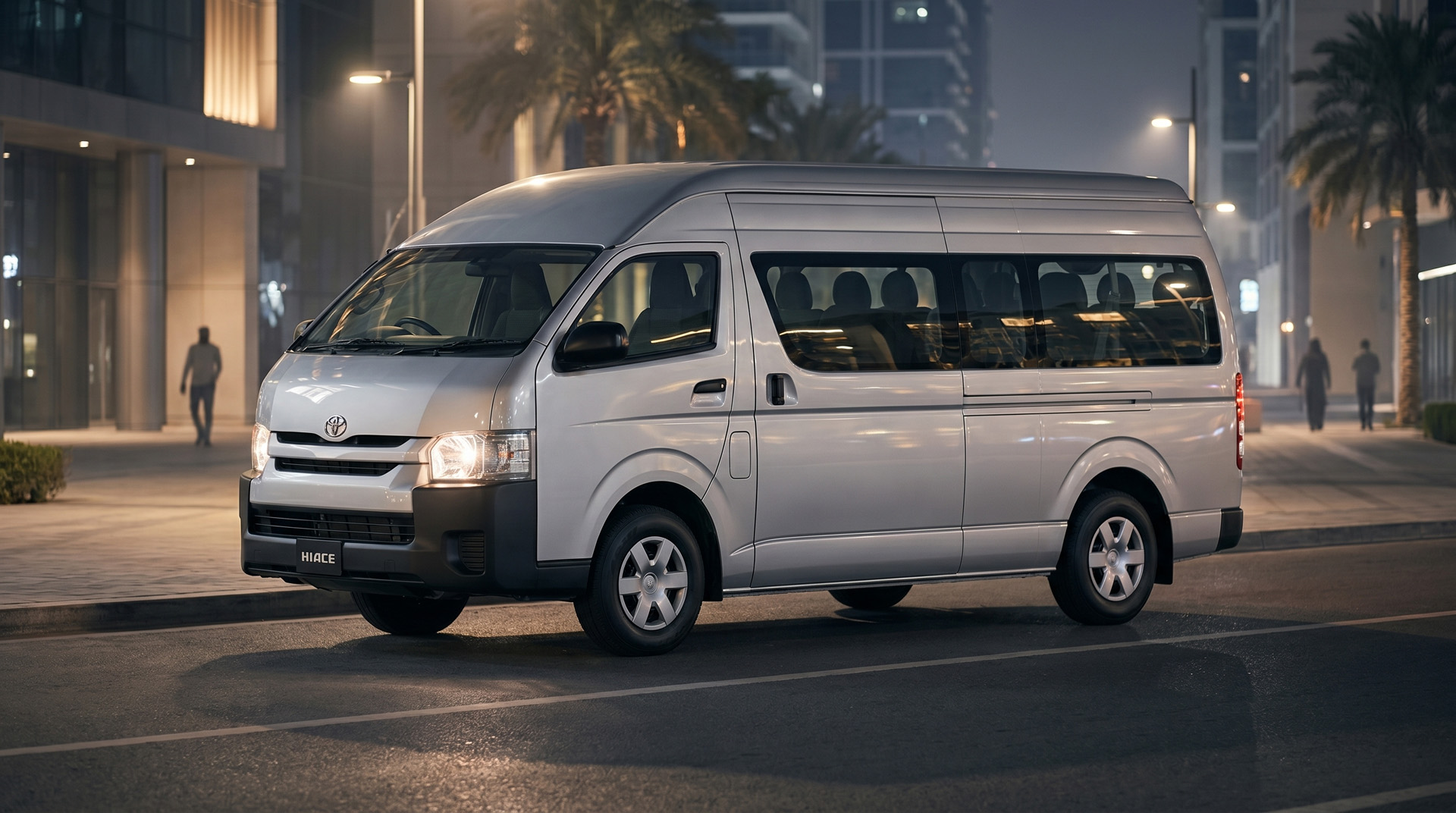

Toyota-Hiace
Designed to meet the demands of passenger transport, the Toyota Hiace Bus combines legendary durability with optimal seating capacity. A true pillar of professional mobility, it ensures reliable performance on every journey—whether for urban transit, tourism, or intercity travel.
Technical Specifications
ENGINE
- Fuel type : Diesel, Petrol
- Displacement (cc) : 2986
- Fuel System : Direct injection, Electronic Fuel Injection
DIMENSIONS
- Dimensions (Lxwxh) in mm : 4695 x 1695 x 1980
- Ground clearance (mm) : 195
TRANSMISSION
- Transmission : Rear 2 WD
- Gearbox : Manual
WEIGHT/CAPACITIES
- Fuel tank capacity (L) : 70
PERFORMANCES
- Acceleration (sec) : 0 to 100km/h : 31.1
WARRANTY
- Manufacturer Warranty : 3 years / 100 000 Km
- Retail Network : TOYOTA
Models available
3.0L Bus High roof 16 Seats
ABS
Air conditioning

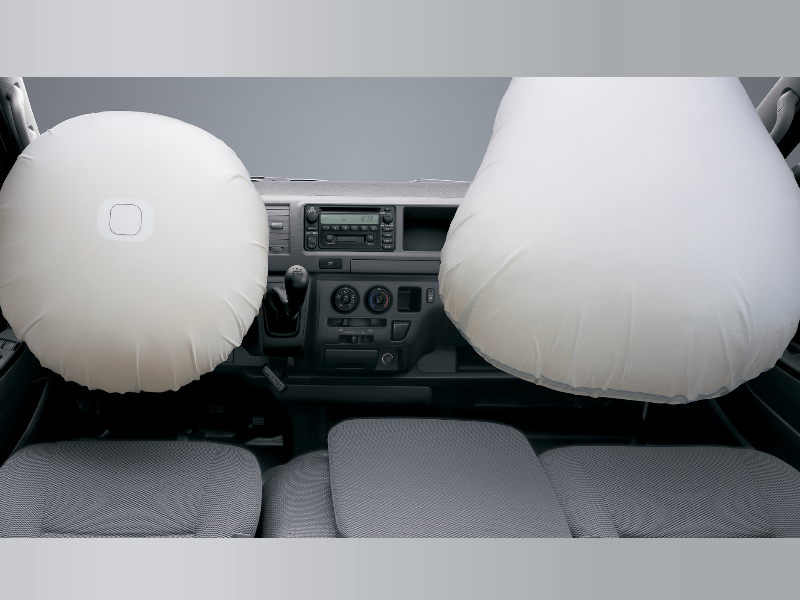

Airbags
Connectivity
Door unlock alert
Immobilizer
Power windows
Spare Wheel Type

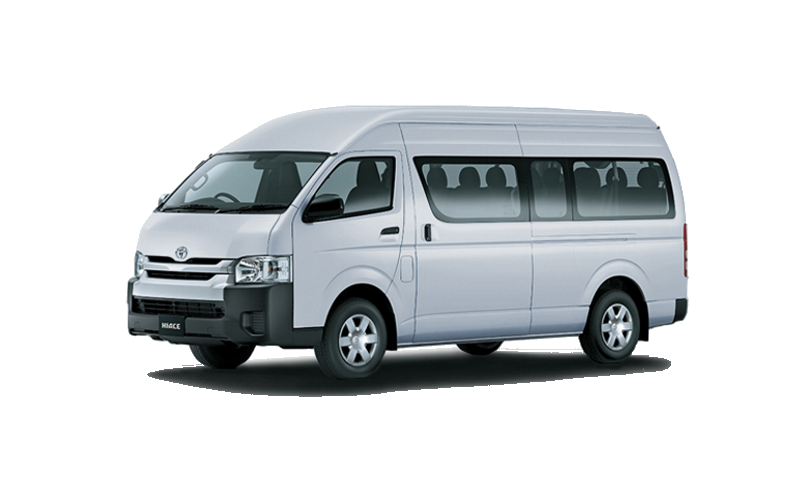

Hiace BUS 3.0L Bus High roof 16 Seats
Technical Specifications
ENGINE |
|
| Displacement (cc) | 2986 |
| Engine Type | Cylinder in line |
| Fuel System | Electronic Fuel Injection |
| Fuel type | Diesel |
| Max power HP/rpm | 92/4000 |
| Max power kW/rpm | 68/4000 |
| Max torque Nm | 197/2400 |
| Number of cylinders | 4 |
 BODY |
|
| Body style | Small Bus |
| Keys Type | Classic |
| Number of doors | 4 |
DIMENSIONS |
|
| Approach angle | 17 |
| Departure angle | 19,2 |
| Dimensions (Lxwxh) in mm | 5380 x 1880 x 2285 |
| Front tread (mm) | 1655 |
| Ground clearance (mm) | 185 |
| Rear tread (mm) | 1650 |
| Turning radius (m) | 6,2 |
| Wheelbase (mm) | 3110 |
TRANSMISSION |
|
| Gearbox | Manual |
| Transmission | Rear 2 WD |
WEIGHT/CAPACITIES |
|
| Additional fuel tank capacity (L) | |
| Curb weight (kg) | 2140 |
| Fuel tank capacity (L) | 70 |
| Gross vehicle weight (kg) | 2025 |
| Number of seats | 16 |
 BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
 SUSPENSIONS |
|
| Front suspension | Double wishbone |
| Kinetic Dynamic Suspension System (E-KDSS) | |
| Rear suspension | Multi-link rear suspension, Leaf |
 TYRES |
|
| Tyre dimension | 195R15C |
PERFORMANCES |
|
| Acceleration (sec) : 0 to 100km/h | |
| Max speed (km/h) | |
 CONSUMPTION |
|
| Consumption mixed cycle (l/100km) | |
Equipments
ACTIVE SAFETY |
|
| ABS | Yes |
| Door unlock alert | Yes |
| Headlamps | Halogen |
| High position brake lamp | Yes |
| Immobilizer | Yes |
| Side turn lamp | Yes |
EXTERIOR |
|
| Adjustable side mirrors | Manuals |
| Bumper - Front&Rear | Black |
| Door handles | Black |
| Door mirrors | Black |
| Folding side mirrors | Manuals |
| Front bumpers | Black |
| Front grill | Black |
| Rear bumpers | Black |
| Sliding side door | Right |
| Wheels | Steel |
INTERIOR & COMFORT |
|
| Adjustable steering wheel | Height adjustable |
| Air conditioning | Manual |
| Car mat | Yes |
| Central door locking | Yes |
| Connectivity | USB |
| Cup holder(s) | Front |
| Driver footrest | Yes |
| Driver seat | Reach adjustable |
| Front seats | 3 |
| Loud speakers | 4 |
| Plug 12V | 1 |
| Power Steering | Yes |
| Power windows | Front |
| Radio | Radio CD / MP3 |
| Room lamps | Yes |
| Steering wheel | Urethane |
| Upholstery | Fabric |
| User guide | English |
PASSIVE SAFETY |
|
| Airbags | Passenger, Driver |
| Headrests | Rear, Front |
| Number of spare wheels | 1 |
| Seatbelt pretentioner | Front |
| Seatbelts - Front | 2 x 3 points + 1 x 2 points |
| Seatbelts – Rear | 2 points |
| Spare Wheel Type | Steel |
2.7L Bus 15 seats
ABS
Air conditioning
Airbags
Connectivity
Door unlock alert
Immobilizer
Power windows
Spare Wheel Type

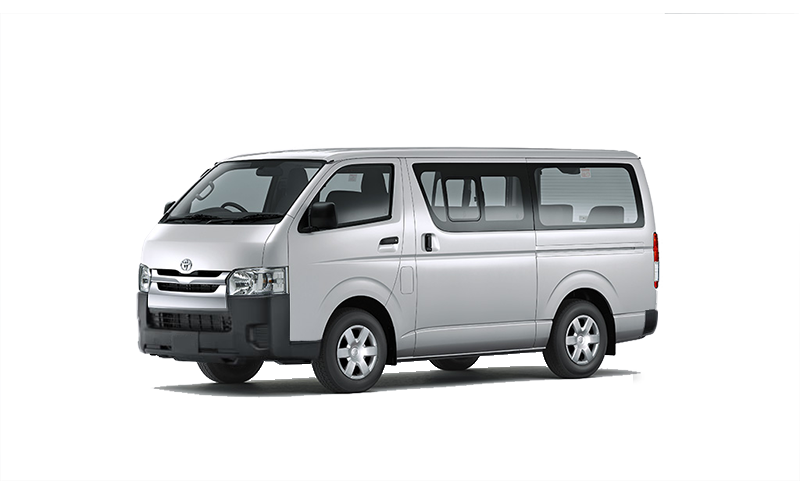

Hiace BUS 2.7L Bus 15 seats
Technical Specifications
ENGINE |
|
| Displacement (cc) | 2694 |
| Engine Type | Cylinder in line |
| Fuel type | Petrol |
| Max power HP/rpm | 151/4800 |
| Max power kW/rpm | 111/4800 |
| Max torque Nm | 241/3800 |
| Number of cylinders | 4 |
BODY |
|
| Body style | Small Bus |
| Number of doors | 5, 4 |
DIMENSIONS |
|
| Approach angle | 18,5 |
| Departure angle | 19,5 |
| Dimensions (Lxwxh) in mm | 4695 x 1695 x 1980 |
| Front tread (mm) | 1470 |
| Ground clearance (mm) | 185 |
| Rear tread (mm) | 1465 |
| Turning radius (m) | 5,0 |
| Wheelbase (mm) | 2570 |
TRANSMISSION |
|
| Gearbox | Manual |
| Transmission | Rear 2 WD |
WEIGHT/CAPACITIES |
|
| Additional fuel tank capacity (L) | |
| Curb weight (kg) | 1810 |
| Fuel tank capacity (L) | 70 |
| Gross vehicle weight (kg) | 2950 |
| Number of seats | 15 |
BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
SUSPENSIONS |
|
| Front suspension | Double wishbone |
| Kinetic Dynamic Suspension System (E-KDSS) | |
| Rear suspension | Multi-link rear suspension, Leaf |
TYRES |
|
| Tyre dimension | 195R15C |
PERFORMANCES |
|
| Acceleration (sec) : 0 to 100km/h | |
| Max speed (km/h) | |
CONSUMPTION |
|
| Consumption mixed cycle (l/100km) | |
Equipments
ACTIVE SAFETY |
|
| ABS | Yes |
| Door unlock alert | Yes |
| Headlamps | Halogen |
| High position brake lamp | Yes |
| Immobilizer | Yes |
EXTERIOR |
|
| Adjustable side mirrors | Manuals |
| Bumper - Front&Rear | Black |
| Door handles | Black |
| Door mirrors | Black |
| Folding side mirrors | Manuals |
| Front bumpers | Black |
| Rear bumpers | Black |
| Sliding side door | Right |
| Wheels | Steel |
INTERIOR & COMFORT |
|
| Adjustable steering wheel | Height adjustable |
| Air conditioning | Manual |
| Car mat | Yes |
| Central door locking | Yes |
| Connectivity | USB |
| Cup holder(s) | Front |
| Driver footrest | Yes |
| Driver seat | Reach adjustable |
| Front seats | 3 |
| Gearshift & Brake lever | Urethane |
| Loud speakers | 2 |
| Plug 12V | 1 |
| Power Steering | Yes |
| Power windows | Front |
| Radio | Radio CD / MP3 |
| Room lamps | Yes |
| Steering wheel | Urethane |
| Upholstery | Vinyl |
| User guide | English |
PASSIVE SAFETY |
|
| Airbags | Passenger, Driver |
| Headrests | Front |
| Number of spare wheels | 1 |
| Seatbelt pretentioner | Front |
| Seatbelts - Front | 2 x 3 points + 1 x 2 points |
| Seatbelts – Rear | 2 points |
| Spare Wheel Type | Steel |
2.7L Bus 16-Seats
ABS
Air conditioning
Airbags
Connectivity
Door unlock alert
Power windows
Spare Wheel Type
Hiace BUS 2.7L Bus 16-Seats
Technical Specifications
ENGINE |
|
| Displacement (cc) | 2694 |
| Engine Type | Cylinder in line |
| Fuel System | Electronic Fuel Injection |
| Fuel type | Petrol |
| Max power HP/rpm | 151/4800 |
| Max power kW/rpm | 111/4800 |
| Max torque Nm | 241/3800 |
| Number of cylinders | 4 |
BODY |
|
| Body style | Small Bus |
| Number of doors | 4 |
DIMENSIONS |
|
| Approach angle | 16,6 |
| Departure angle | 19,7 |
| Dimensions (Lxwxh) in mm | 4840 x 1880 x 2105 |
| Front tread (mm) | 1655 |
| Ground clearance (mm) | 185 |
| Rear tread (mm) | 1650 |
| Turning radius (m) | 5,3 |
| Wheelbase (mm) | 2570 |
TRANSMISSION |
|
| Gearbox | Manual |
| Transmission | Rear 2 WD |
WEIGHT/CAPACITIES |
|
| Additional fuel tank capacity (L) | |
| Curb weight (kg) | 1895 |
| Fuel tank capacity (L) | 70 |
| Gross vehicle weight (kg) | 3100 |
| Number of seats | 16 |
BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
SUSPENSIONS |
|
| Front suspension | Double wishbone |
| Kinetic Dynamic Suspension System (E-KDSS) | |
| Rear suspension | Multi-link rear suspension, Leaf |
TYRES |
|
| Tyre dimension | 195R15C |
PERFORMANCES |
|
| Acceleration (sec) : 0 to 100km/h | |
| Max speed (km/h) | |
CONSUMPTION |
|
| Consumption mixed cycle (l/100km) | |
Equipments
ACTIVE SAFETY |
|
| ABS | Yes |
| Door unlock alert | Yes |
| Headlamps | Halogen |
| High position brake lamp | Yes |
| Side turn lamp | Yes |
EXTERIOR |
|
| Adjustable side mirrors | Manuals |
| Bumper - Front&Rear | Black |
| Door handles | Black |
| Door mirrors | Black |
| Folding side mirrors | Manuals |
| Front bumpers | Black |
| Front grill | Black |
| Rear bumpers | Black |
| Wheels | Steel |
INTERIOR & COMFORT |
|
| Adjustable steering wheel | Height adjustable |
| Air conditioning | Manual |
| Car mat | Yes |
| Central door locking | Yes |
| Connectivity | USB |
| Cup holder(s) | Front |
| Driver footrest | Yes |
| Driver seat | Reach adjustable |
| Front seats | 3 |
| Gearshift & Brake lever | Urethane |
| Loud speakers | 2 |
| Plug 12V | 1 |
| Power Steering | Yes |
| Power windows | Front |
| Radio | Radio CD / MP3 |
| Room lamps | Yes |
| Steering wheel | Urethane |
| Upholstery | Vinyl |
PASSIVE SAFETY |
|
| Airbags | Passenger, Driver |
| Headrests | Front |
| Number of spare wheels | 1 |
| Seatbelt pretentioner | Front |
| Seatbelts - Front | 2 x 3 points + 1 x 2 points |
| Seatbelts – Rear | 2 points |
| Spare Wheel Type | Steel |
2.7L Bus High roof 16-Seats
ABS
Air conditioning
Airbags
Connectivity
Door unlock alert
Power windows
Spare Wheel Type

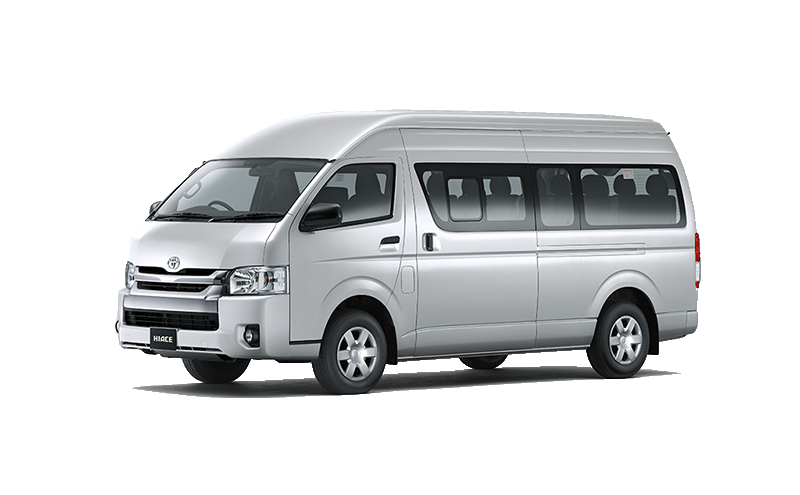

Hiace BUS 2.7L Bus High roof 16-Seats
Technical Specifications
ENGINE |
|
| Displacement (cc) | 2694 |
| Engine Type | Cylinder in line |
| Fuel System | Electronic Fuel Injection |
| Fuel type | Petrol |
| Max power HP/rpm | 151/4800 |
| Max power kW/rpm | 111/4800 |
| Max torque Nm | 241/3800 |
| Number of cylinders | 4 |
BODY |
|
| Body style | Small Bus |
| Keys Type | Classic |
| Number of doors | 4 |
DIMENSIONS |
|
| Approach angle | 17 |
| Departure angle | 19,2 |
| Dimensions (Lxwxh) in mm | 5380 x 1880 x 2285 |
| Front tread (mm) | 1655 |
| Ground clearance (mm) | 185 |
| Rear tread (mm) | 1650 |
| Turning radius (m) | 6,2 |
| Wheelbase (mm) | 3110 |
TRANSMISSION |
|
| Gearbox | Manual |
| Transmission | Rear 2 WD |
WEIGHT/CAPACITIES |
|
| Additional fuel tank capacity (L) | |
| Curb weight (kg) | 2090 |
| Fuel tank capacity (L) | 70 |
| Gross vehicle weight (kg) | 3300 |
| Number of seats | 16 |
BRAKES |
|
| Front brake | Ventilated discs |
| Parking brake | Manual |
| Rear brake | Drums |
SUSPENSIONS |
|
| Front suspension | Double wishbone |
| Kinetic Dynamic Suspension System (E-KDSS) | |
| Rear suspension | Multi-link rear suspension, Leaf |
TYRES |
|
| Tyre dimension | 195R15C |
PERFORMANCES |
|
| Acceleration (sec) : 0 to 100km/h | |
| Max speed (km/h) | |
CONSUMPTION |
|
| Consumption mixed cycle (l/100km) | |
Equipments
ACTIVE SAFETY |
|
| ABS | Yes |
| Door unlock alert | Yes |
| Headlamps | Halogen |
| High position brake lamp | Yes |
| Side turn lamp | Yes |
EXTERIOR |
|
| Adjustable side mirrors | Manuals |
| Bumper - Front&Rear | Black |
| Door handles | Black |
| Door mirrors | Black |
| Folding side mirrors | Manuals |
| Front bumpers | Black |
| Front grill | Black |
| Rear bumpers | Black |
| Sliding side door | Right |
| Wheels | Steel |
INTERIOR & COMFORT |
|
| Adjustable steering wheel | Height adjustable |
| Air conditioning | Manual |
| Car mat | Yes |
| Central door locking | Yes |
| Connectivity | USB |
| Cup holder(s) | Front |
| Driver footrest | Yes |
| Driver seat | Reach adjustable |
| Front seats | 3 |
| Gearshift & Brake lever | Urethane |
| Loud speakers | 4 |
| Plug 12V | 1 |
| Power Steering | Yes |
| Power windows | Front |
| Radio | Radio CD / MP3 |
| Room lamps | Yes |
| Steering wheel | Urethane |
| Upholstery | Fabric |
| User guide | English |
PASSIVE SAFETY |
|
| Airbags | Driver, Passenger |
| Headrests | Front, Rear |
| Number of spare wheels | 1 |
| Seatbelt pretentioner | Front |
| Seatbelts - Front | 2 x 3 points + 1 x 2 points |
| Seatbelts – Rear | 2 points |
| Spare Wheel Type | Steel |

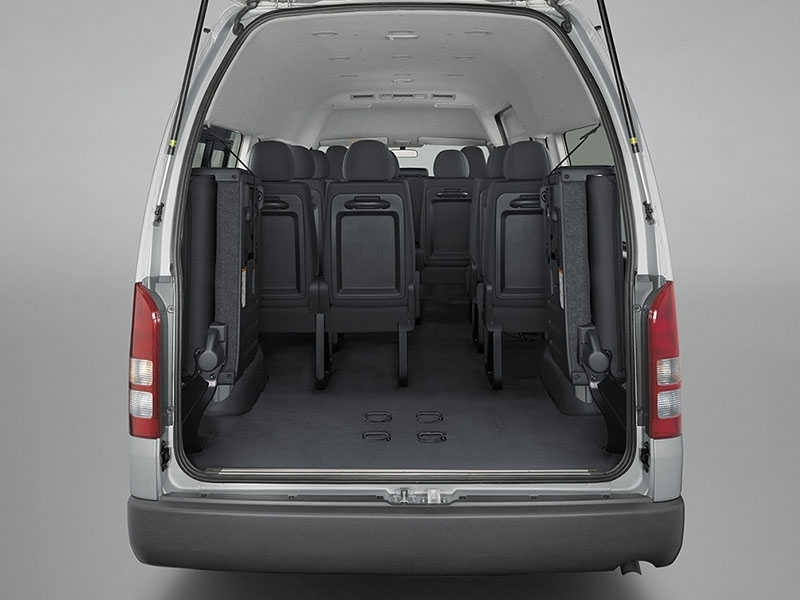

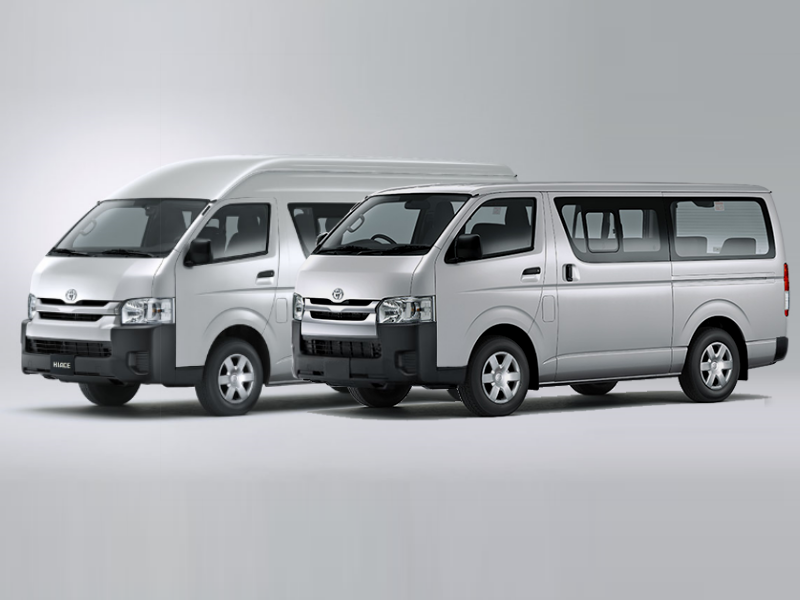

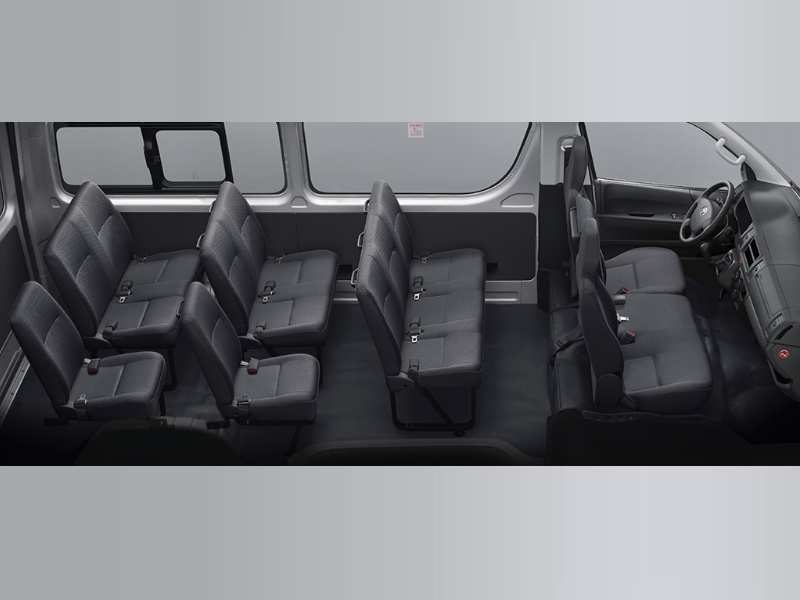

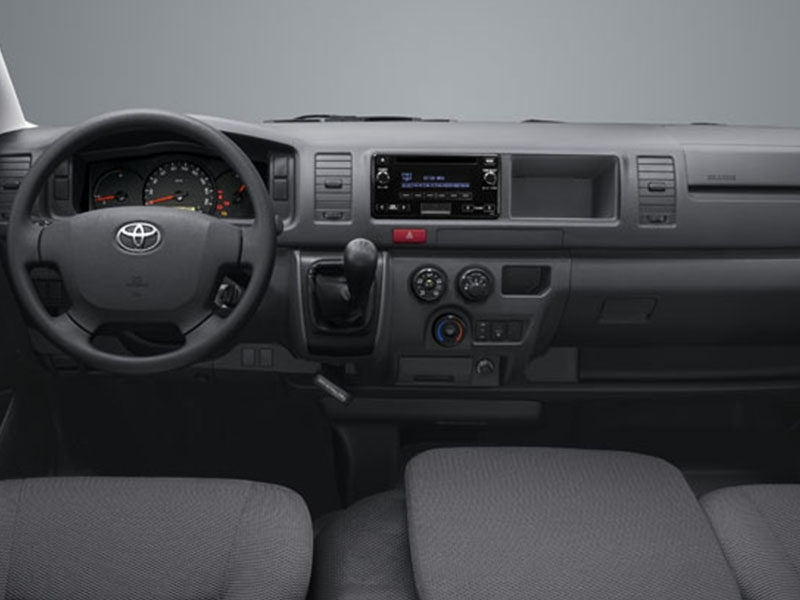

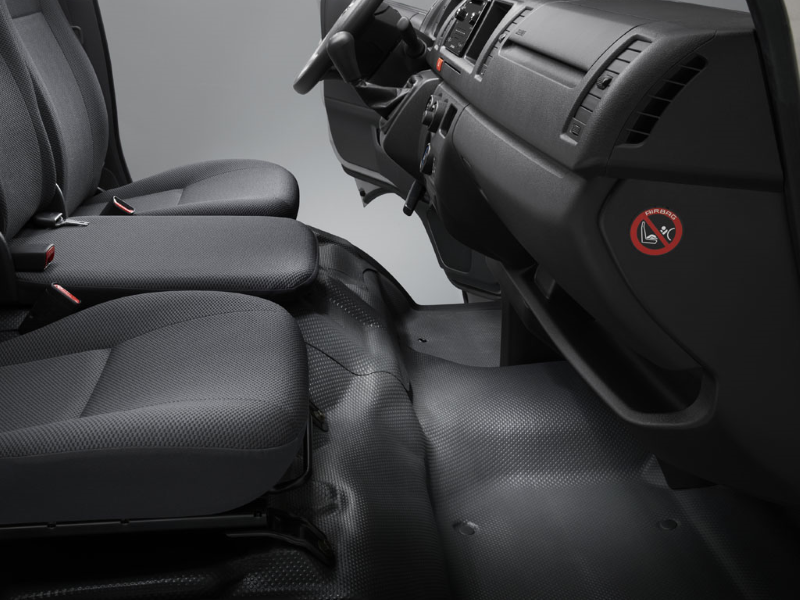

Gallery
Non-contractual images
